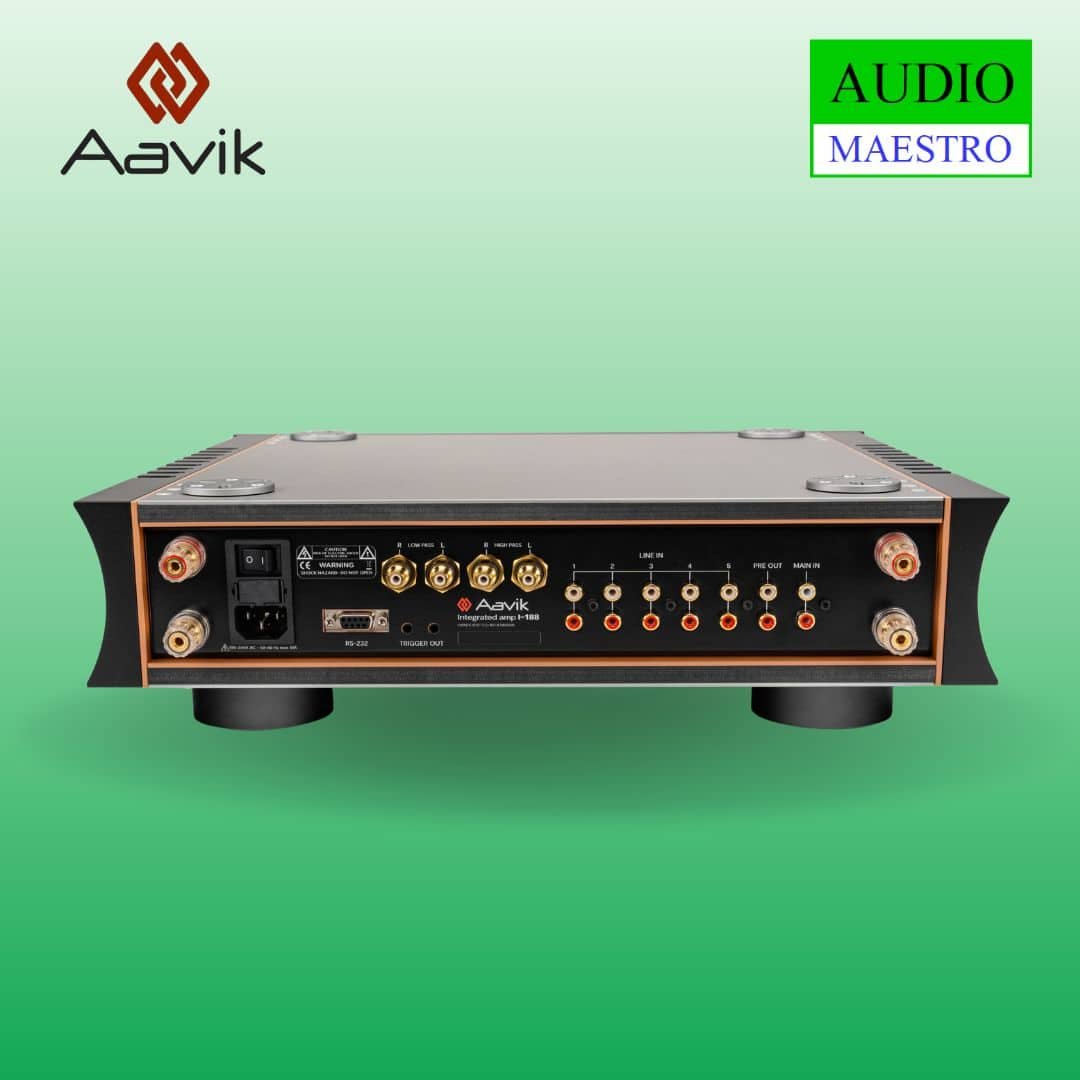

Aavik Acoustics I-188 Integrated Amplifier

For Prices Login

In stock

Overview – The Aavik Acoustics I-188 Integrated Amplifier, released in 2019, is a solid-state Class D integrated amplifier featuring an integrated DAC and network streaming platform, delivering exceptional efficiency, transparency, and musical precision.



UFPD Amplification Technology – Utilizing advanced Class D amplification with an ultra-low-noise power supply, the Aavik Acoustics I-188 Integrated Amplifier delivers exceptional speed, effortless dynamics, and outstanding loudspeaker control across diverse listening environments.



Complete High-End Solution – The Aavik Acoustics I-188 Integrated Amplifier combines high-resolution streaming, premium digital conversion, and balanced analogue circuitry, creating a versatile all-in-one component for modern audiophile systems.



Advanced Technology for Superior Musical Control

Aavik I-x88 amplifiers are based on the latest version of Pascal class D amplifier technology, which features even faster UMAC switching modulation and generates lesser noise. This circuit now requires lesser filtering and has lower output impedance, which ensures greater control over connected speakers, and consistent performance across the entire musical spectrum.



Resonant Mode Power Supply

Aavik x88 amplifiers feature a fast, low-noise switching power supply, optimized for class D amplification. Operating in power-factor-corrected resonant mode, it delivers smooth, clean sine wave power. When extra power is needed, the supply adjusts its frequency to increase power density, ensuring high peak currents without distortion. The result is a very low noise floor, low output impedance, and superior control over connected speakers.





Line Input: Maximum input 4.5V RMS (Line 1-4) Maximum input 6.5V RMS (Line 5) Input impedance 10kohm

Preamp Output: 1 pair of RCA outputs

Max Output: 7,5Vrms

DISTORTION LINE: STAGE: 0,005% (THD at 1kHz, 1V input)

OUTPUT IMPEDANCE: 50 ohms

VOLUMECONTROL: 76 1dB steps

SPEAKER OUTPUT: 2 x 300W 8 ohm 2 x 600W 4 ohm

DISTORTION (THD+N): 0,0028% (1W, 1kHz, 8 ohm)

IMD: 0,0008% (10W, 8 ohm)

TIM: 0,002% (10W, 8 ohm)

Main In: 1.33V RMS in for full power
Input impedance 3.4kohm

AAVIK NOISE REDUCTION: Active Tesla Coils: 36. Active Square Tesla Coils: 96 Dither circuitry: 4 Anti Areal Resonance Coils: 4

POWER CONSUMPTION: Standby: <1W, : <30W

INPUT VOLTAGE: 100-240 V

MAX CURRENT: 10 A

DIMENSIONS:440 x 393,5 x 117,8mm (WxDxH)

WEIGHT: 23,3kg

Additional information

Condition

Amplifier Class

Class D
