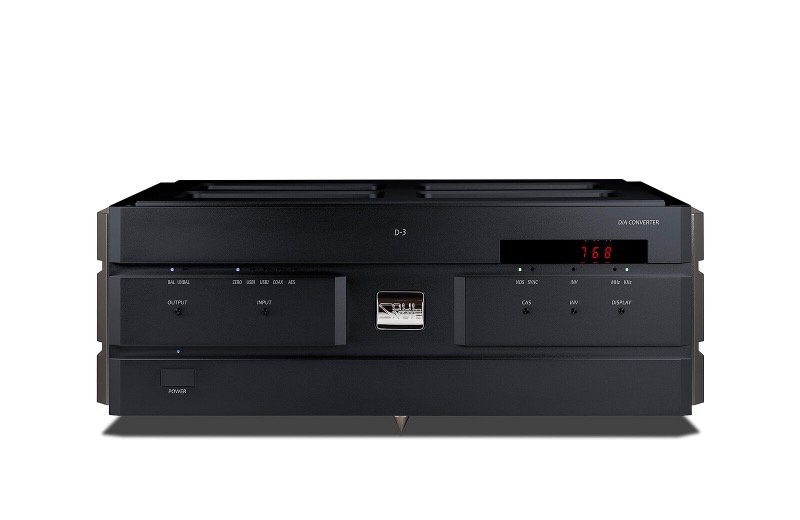

SOULNOTE D-3 DAC
For Prices Login
• Overview – SOULNOTE D-3 DAC, released in 2020, is a reference-class digital-to-analog converter designed with SoulNote’s zero-feedback architecture to deliver highly accurate, ultra-low distortion conversion and musical transparency.
• Digital Architecture – Utilising discrete analogue filter stages and precision clocking, the D-3 DAC preserves timing integrity and dynamic expression, providing outstanding resolution and spatial coherence from PCM and DSD sources.
• Sound Quality – The SOULNOTE D-3 DAC is prized for its natural midrange clarity, refined treble extension, and low noise floor, allowing connected preamplifiers and amplifiers to reveal deeper musical nuance across genres.
| Supported sampling frequency | ZERO LINK, USB: Max. 768kHz (PCM) / Max. 22.6MHz (DSD) Coaxial, AES/EBU: Max. 192kHz (PCM) / Max. 2.8MHz (DSD64 DoP v1.1) |
| PCM quantization bit rate | ZERO LINK, USB: 16bit, 24bit, 32bit Coaxial, AES/EBU: 16bit, 24bit |
| Digital input | ZERO LINK, USB (Typ B) 2, coaxial (S/PDIF), AES/EBU |
| External clock input | 10MHz (SMA 50ohms) |
| Analog output | XLR x1, RCA x1 |
| Analog output level | XLR: 5,6Vrms RCA: 2,8Vrms |
| Frequency characteristic | 2Hz bis 120kHz (+0/-1dB） |
| S/N ratio | 110dB |
| Total harmonic distortion | 0,008％ (NOS/176,4kHz) |
| Analog filter | Primary passive type |
| Power voltage | 230V AC 50Hz |
| Power consumption | 48W |
| Maximum external dimensions | Main unit: 454(W) × 174(H) × 407(D)mm |
| Weight | 28kg |
| Included accessories | Spike board, spikes, remote controller, power cable |
Additional information
| Condition | |
|---|---|
| Voltage | 220V – 240V |
